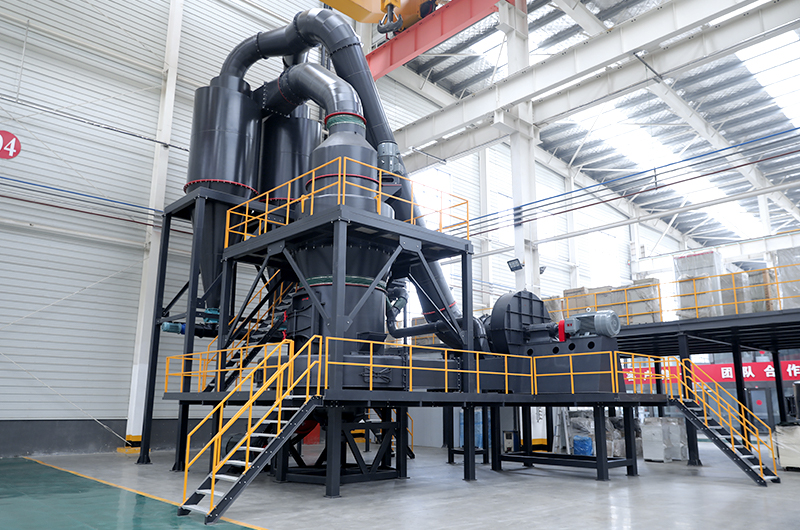

HGM Ultrafine Grinding Mill

Feed Size ≤30mm

Capacity 1-100/h

Exported Countries Cameroon, Tanzania, Congo (DRC), Nigeria, South Africa, Uganda, Albania, Netherlands, United Kingdom, Australia, Tajikistan, Saudi Arabia, Yemen, Mongolia, South Korea, Vietnam, Indonesia, Jordan, Sri Lanka, Pakistan, Palestine, Mexico, Honduras , Nicaragua, etc.

Applied Materials Ultrafine grinding mill can process the non inflammable and explosive minerals with less than 7 Mohs hardness and below 6% humidity, such as calcite, bentonite, limestone, fly ash, kaolin, bentonite, mica, talc, magnesite, pyrophyllite ore, sepiolite, diatomite, barite, gypsum, alum stone, fluorite, rock phosphate, potassium ore, pumice and other minerals.

Get Quote Get latest Price

Introduction

HGM series fine grinding mill is developed and improved based on the property of traditional grinding mill. According to the customers' feedback opinions and the grinding practical situation at home and abroad, the inner structure, appearance design and welding technology of the HGM series fine grinding mill are all innovated and improved. Nowadays the HGM series fine grinding mill has been one of the best-selling grinding equipment on the grinding market. With diversified and convenient adjustment ways, finished fineness of the HGM series fine grinding mill can be discretionarily adjusted from 0.18mm (80 meshes) -0.015mm (800 meshes).

Advantages

Automatic dust removal, high efficiency and Environment friendly.

High fineness and flexible adjustment.

High production and efficiency, Low Consumption

Cage type powder separator has good sealing and low vibration, low noise.

Easy Convenient Maintenance and Long Service Life.

Applications

Coal Mine Non-metallic Ores Ceramics Refractory Materials Water Slag Steel Slag Coal Slag, etc.

Technical Data

Model	HGM88	HGM95	HGM 100	HGM120	HGM130	HGM138	HGM160	HGM175	HGM190
Feeding size（mm）	＜20	＜25	＜25	＜25	＜25	＜25	＜30	＜35	<40
Finished product size（mm）	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.015	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038	0.25-0.038
Processing capacity（t/h）	0.4-5	0.6-7	0.8-10	1.2-15	1.6-21	2-25	2.7-28	3-35	5-40
Central shaft rotate speed（r.min）	167	150	142	136	105	92.5	82	75	74
Diameter of pulverizing ring（mm）	908	1006	1075	1280	1400	1510	1770	1900	2040
Number Of pulverizing roller	3	3	3	3	4	4	5	5	4
Main motor power（kw）	22	30	45	55	75	90	132	185	280
Fan motor power（kw）	22	30	45	75	90	110	160	200	280
Analyzer motor power（kw）	5.5	7.5	11	15	18.5	22	22/30	30/45	55
