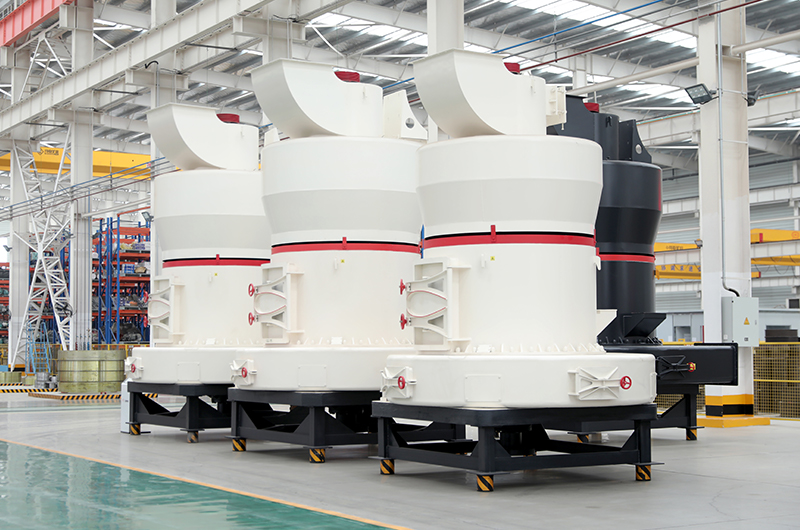

Raymond Mill

Feed Size ≤30mm

Capacity 1-100/h

Exported Countries Cameroon, Tanzania, Congo (DRC), Nigeria, South Africa, Uganda, Albania, Netherlands, United Kingdom, Australia, Tajikistan, Saudi Arabia, Yemen, Mongolia, South Korea, Vietnam, Indonesia, Jordan, Sri Lanka, Pakistan, Palestine, Mexico, Honduras , Nicaragua, etc.

Applied Materials Ultrafine grinding mill can process the non inflammable and explosive minerals with less than 7 Mohs hardness and below 6% humidity, such as calcite, bentonite, limestone, fly ash, kaolin, bentonite, mica, talc, magnesite, pyrophyllite ore, sepiolite, diatomite, barite, gypsum, alum stone, fluorite, rock phosphate, potassium ore, pumice and other minerals.

Get Quote Get latest Price

Introduction

Raymond mill is widely used in high-fine powder processing of more than 280 kinds of non-metallic ore materials with a Mohs hardness of not more than 9.3 and non-flammable and explosive mineral, chemical and construction industries with a humidity of 6% or less.

Advantages

Low production cost, high-performance

Good stability, high reliability

Small footprint, strong systemic

Creative grinding roller and ring

Good product size, through screening rate is 99%

Applications

Coal Mine Non-metallic Ores Ceramics Refractory Materials Water Slag Steel Slag Coal Slag, etc.

Customer Cases

15 t/h Grinding Mill Plant in Yemen

Materials: : Calcium Carbonate/Caco3

Model: : HGM 100

Input size: : 5-10mm

Output size: : 400 mesh

Technical Data

Model	4525	4119
Feeding Size(mm)	≤30	≤25
Output Size(mm)	0.173-0.044	0.173-0.044
Shift Output of Different Material Fineness(t)	16-176	8-78
Rotation Speed of Central Shaft(r/min)	82	105
Ring Diameter(mm)	1770	1400
Roller Diameter(mm)	450	410
Roller Height(mm)	250	190
Main Motor(kw)	Y315M-4-132	Y280S-4-75
Fan Motor	Y315M-4-132	Y280S-4-75
Analyzer Motor	YCT250-4A-18.5	YCT200-4B-7.5

Company and Services

40
Over 40 years development history
30
With an area of 300,000㎡ standard industrial workshops
600
More than 600 sets of various production equipment
360
More than 360 engineering and after-sales service persons

Specialized technical training and instructions

Tracking service, regular inspection equipment

Free technical advice and guidance

The lifelong service and spare parts for customers
