Stone Crusher

Feed Size ≤25mm

Capacity 5-600/h

Exported Countries Germany, France, Sierra Leone, Russia, Netherlands, United States, Canada, Chile, United Arab Emirates, Saudi Arabia, Iraq, Kyrgyzstan, Tajikistan, Kazakhstan, Uzbekistan, Tanzania, Nigeria, Rwanda, Liberia, Singapore, Thailand, Cambodia, Indonesia , South Korea, Philippines, etc.

Applied Materials Cement, limestone, rocks, granite, basalt, aggregate, metallurgy, pebble, calcite, quartz, concrete, dolomite, bluestone, coal gangue, construction waste, ferrosilicon, sandstone, ore, glass, cement clinker, gold ore, iron ore, copper ore, etc.

Get Quote Get latest Price

Introduction

Stone crushers commonly classified by the degree to which they fragment the starting material, with primary and secondary crushers handling coarse materials, and tertiary and quaternary crushers reducing ore particles to finer gradations. Each crusher is designed to work with a certain maximum size of raw material, and often delivers its output to a screening machine which sorts and directs the product for further processing.Typically, crushing stages are followed by milling stages if the materials need to be further.

Advantages

Big crushing ratio.

Easy-to-clean crushing chamber

Cubic product shape, lower flakiness content.

Simple structure, convenient installation and maintenance and lower operation cost.

The percentage of water can reach to the level of 8% after material being crushed.

Customer Cases

150 t/h Stone Crusher Plant in Ethiopia

Materials: : Granite

Model: : PE-600×900

Input size: : 0-600mm

Output size: : 0-10mm, 10-13mm, 13-20mm, 20-25mm

Technical Data

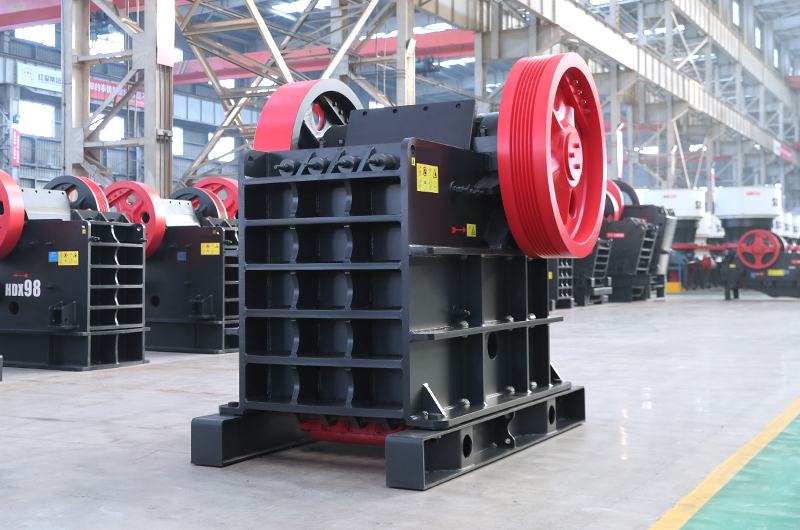

PE/PEX jaw crusher
HD German version jaw crusher

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size(mm)	Max.Feeding size （mm）	Adjustment range of discharge port（mm）	Capacity(t/h)	Power(kw)	Dimensions L×W×H （mm）
HD72(57)	460×720	425	45-100	50-120	6P 55	2100×1556×1640
HD86(69)	580×860	500	50-150	60-280	8P 75	2200×1754×1810
HD98(751)	680×980	630	75-175	110-410	8P 110	2660×1960×2175
HD110(912)	850×1100	750	100-200	170-550	6P 132	2960×2381×2556
HD125	950×1250	900	125-225	280-750	8P 160	3500×2614×2925

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
