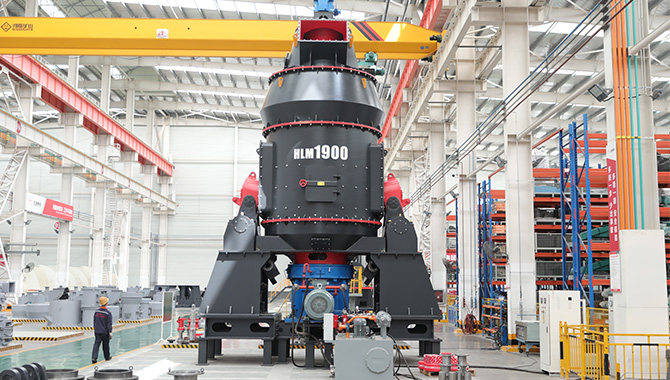

Vertical Roller Mill

Vertical Roller Mill Working Video

Working Principle：

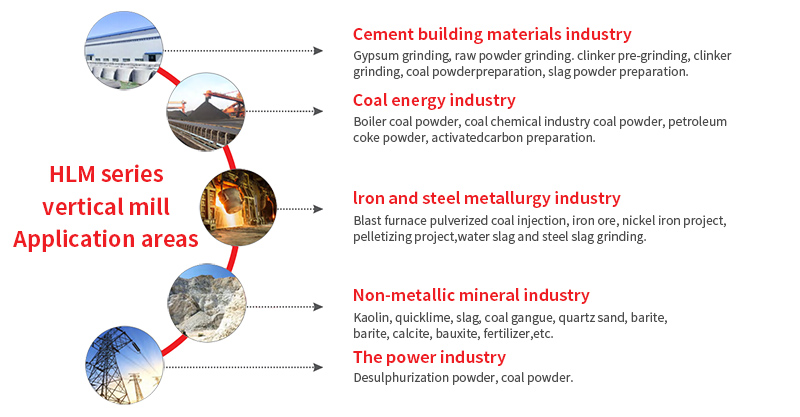

The VRM is a vertically placed large sized machine which is equipped with some rollers used for grinding raw material. It also consists of one table which is rotated by electrical motor & raw materials are feeded on the table. Due to centrifugal force on the table, raw material goes below the rollers (a gap between roller & table has to be maintain) automatically & start getting grinded. The rollers are driven by the friction between table & raw materials. The grinding process is done by exposing a bed of material to a pressure sufficiently high created by rollers which causes fracture on the individual particles in the bed. Due to such grinding, fine particles pass through the separator as the final product to the silo due to huge negative pressure in the mill & course particles falling down (separated by highly efficient separator)on the table for further grinding.  Vertical Roller Mill can grind quartz, iron ore, river pebble, granite, basalt, diabase, limestone, calcite, dolomite, barite, talc, gypsum, bentonite, feldspar, fluorite, bauxite, slag, grain slag, clinker, granite, iron oxide yellow, barite, potassium, marble, lime, activated clay, activated carbon, bentonite, cement, phosphate rock, from 20 mesh into 2500 mesh.

Suitable grinding bed is easily obtained in vertical roller mill with high efficiency separator which ensures high fineness of product.
